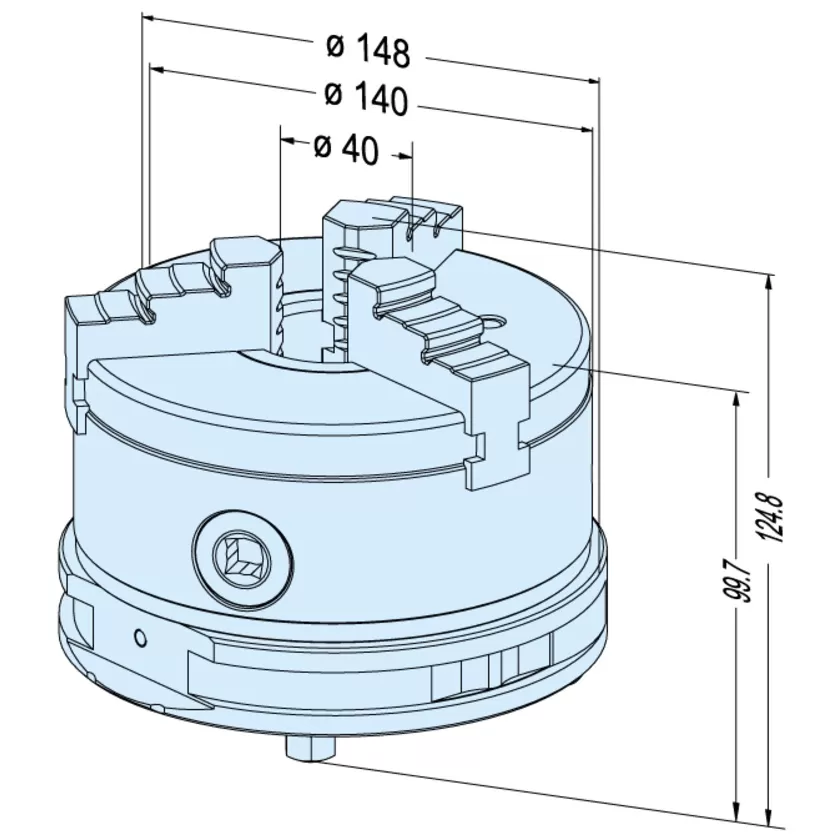

ER-068697 Erowa OEM 3 Jaw Concentric Chuck Manual diameter 140 on 148G Pallet

$0.01

Version Manually operated three-jaw chuck diameter140mm. Central clamping range 3-53mm. Body made of steel. High concentric accuracy according to DIN 6386. Fitted to pallet diameter 148 G. Including 3 hardened drilling jaws (outward stepped), 3 hardened turning jaws (inward stepped) and 1 wrench. Please note Max. speed 5,000 min-1. Application In combination with EROWA chucks on lathes, round tables, dividing heads, etc. Spare parts Block jaws, soft, for three-jaw chuck, set of 3, size 140mm.

9999 in stock

SKU: ER-068697 Category:

Description

Version
Manually operated three-jaw chuck diameter140mm. Central clamping range 3-53mm. Body made of steel. High concentric accuracy according to DIN 6386. Fitted to pallet diameter 148 G. Including 3 hardened drilling jaws (outward stepped), 3 hardened turning jaws (inward stepped) and 1 wrench.
Please note
Max. speed 5,000 min-1.
Application
In combination with EROWA chucks on lathes, round tables, dividing heads, etc.
Spare parts
Block jaws, soft, for three-jaw chuck, set of 3, size 140mm.
