Description

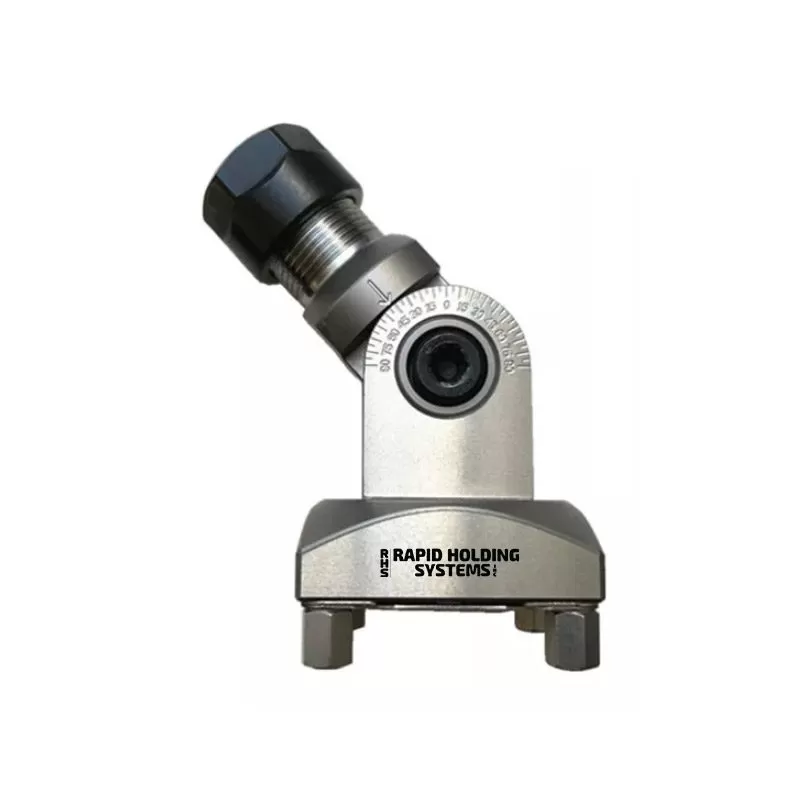

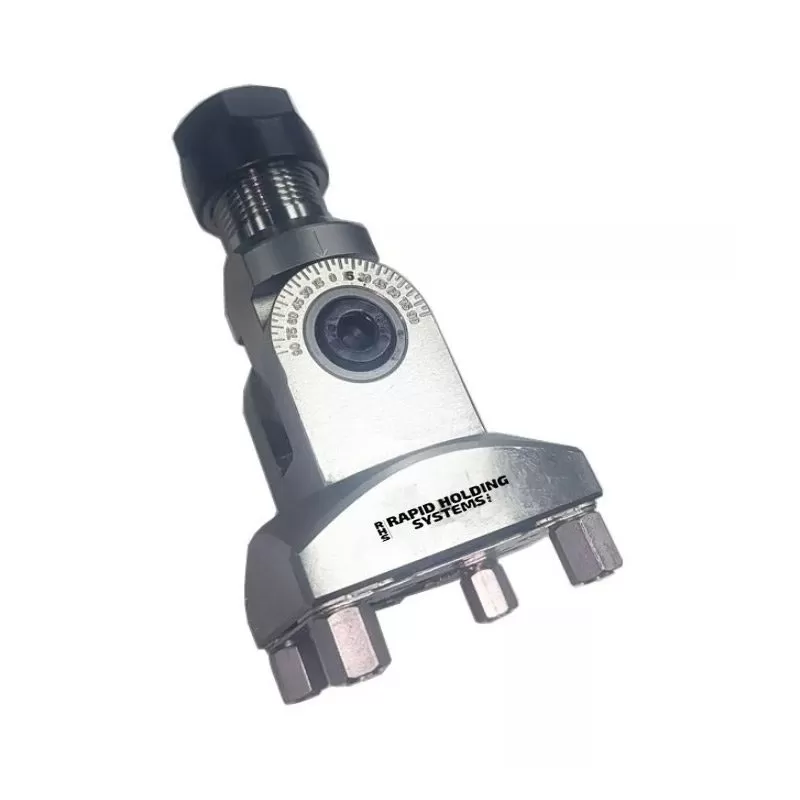

Erowa compatible Angle Rotating Chuck Tunnel Holder
Erowa compatible Angle Rotating Chuck Tunnel Holder for Machine Use. Rapid Holding Systems tools is designed for use in WEDM and EDM machining. It features a rotatable angle range of +/-50 degrees, with each angle mark at 5 degrees. This holder can clamp round materials up to diameter 10mm and comes with an ER16 collet as the factory standard. customizations accepted, allowing the collet in the holder to be changed as required, such as an ER20 collet. this versatile chuck tunnel holder meets diverse machining needs.
| Specification | Description |
| Compatibility | Erowa |
| Applications | WEDM and EDM machining |
| Rotatable Angle Range | +/-50 degrees |
| Angle Marking Increment | 5 degrees |
| Clamping Capacity | Round materials up to diameter 10mm |
| Standard Collet | ER16 (factory standard) |
| Customization | Accepts bespoke orders (e.g., ER20 collet) |
| Additional Tools | Enhanced by Rapid Holding Systems tools |
