Description

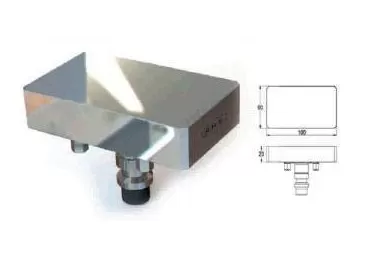

EROWA Compatible Parallel Gauging Pin
RHS Parallel gauging pin is compatible with EROWA ITS System. Comes Pre-mounted on Centering Plate 50 ER-009214. It’s suitable to check the flatness and linear tolerance by two sides and the top. Beneficial to help you to installed and adjust the chuck position on CNC milling, CMM and EDM sink Machine center.
SPECIFICATION | |
SIZE | 100X60X23mm |
MATERIAL | STAINLESS STEEL 420 48-52HRC |
TOLERENCE | CONCENTRICITY TOLERANCE +/- 0.002mm |
