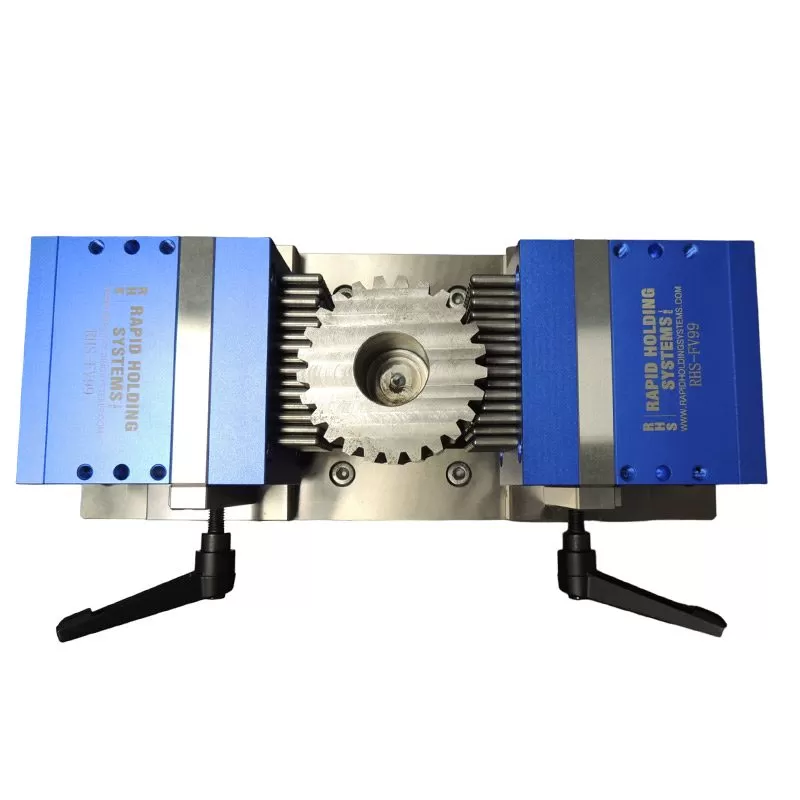

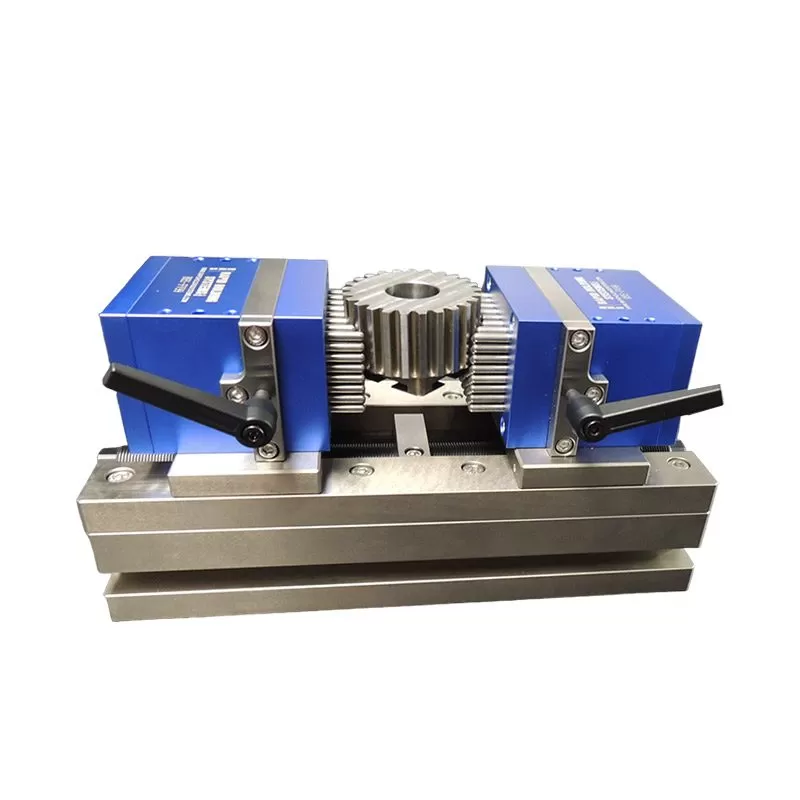

RHS Flexible Tooling Self Centering Vise
RHS Self Centering Vise for Flexible Tooling and irregular shapes is a centering vice composed of 2 pcs of flexible tooling fixtures. The pins on fixtures are flexible and able to simulate the figure of a complex workpiece easily when clamping it. The application of this centering vise is for CNC machining, measurement in the laboratory, and assembly. The air connection on the lateral side is a function for keeping fixtures from swarfs after machining.
| Size | 350x150x172mm |
| Material | Chrome steel + Aluminum alloy |
| Hardness | 32-52HRC |
| Pin Diameter | ?5mm |
| Max Clamping Size | 106mm |
| Max Load Bearing | 150KG |
| Max Torque | 60Nm |
| Pins Number | 226P |
| Locking Mode | Manual |
| Net Weight | 35KGS |
