Description

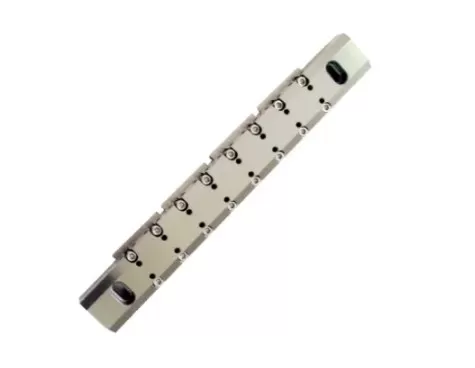

RHS Wire EDM Ruler Compatible 550mm Clamping Beam
RHS Wire EDM Ruler Compatible 550mm Clamping Beam. Wire cut clamp ruler to mount on different WEDM machines. A flat-plate work can be stably fixed with one set of two pieces. Designed/manufactured in accordance with various wire EDM models of Makino, Agie, Sodick, FANUC.
Length 550mm
Width 60 mm
Height 30 mm
It can be customized as per the customer’s requirement.
| Model Size(mm) | L | L1 | B | H |
| A | 370 | – | 45 | 30 |
| B | 450 | – | 60 | 30 |
| C | 550 | – | 60 | 30 |
| D | 650 | – | 80 | 36 |
| E | 750 | – | 80 | 36 |
| F | 950 | – | 80 | 40 |
| **Please advice L1 size before order** | ||||
| Material | Hardened | Paralelism | Squareness | |
| SUS440 | HRC50-55 degrees | 0.005/100mm | 0.005/100mm | |
