Description

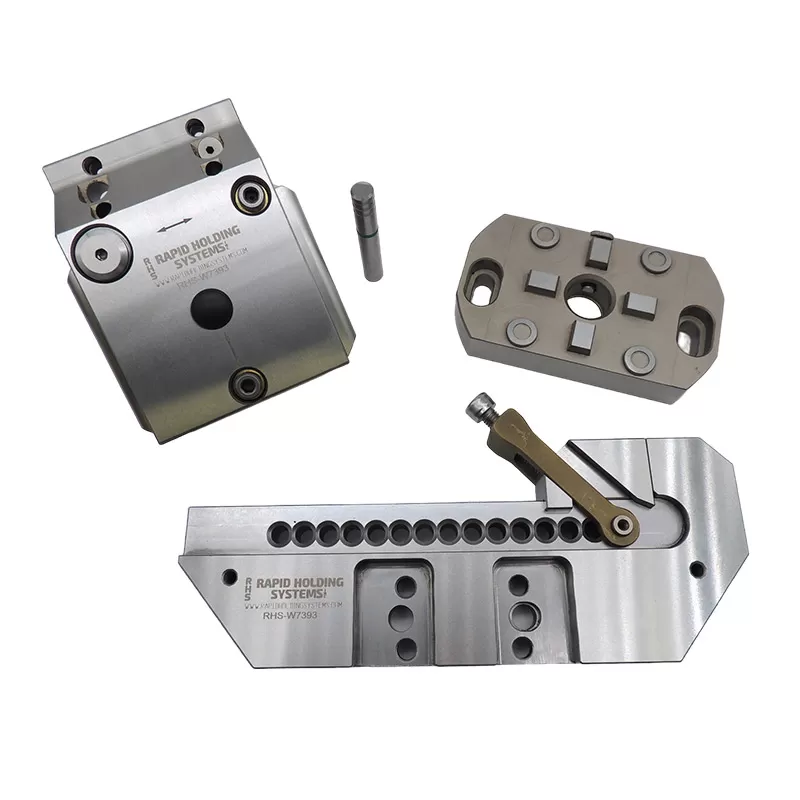

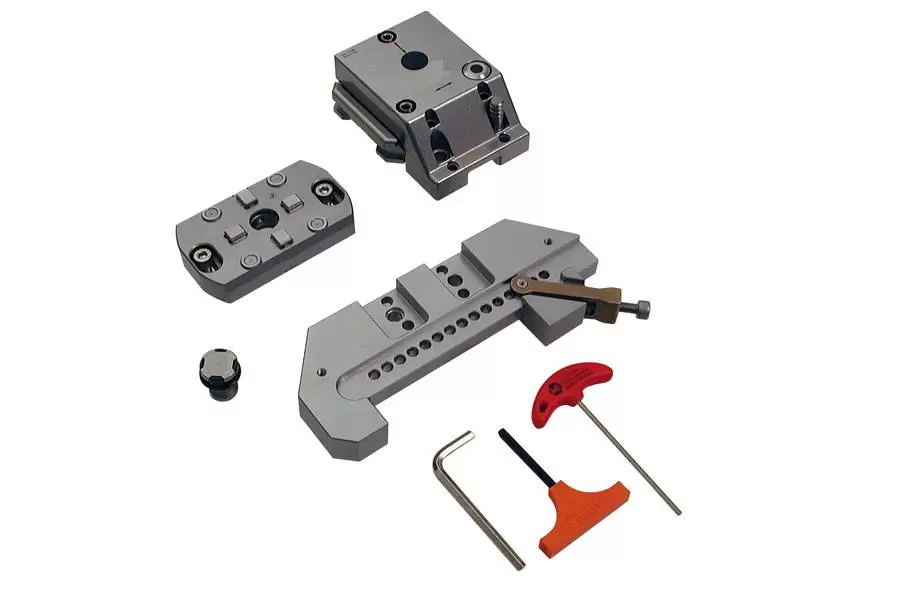

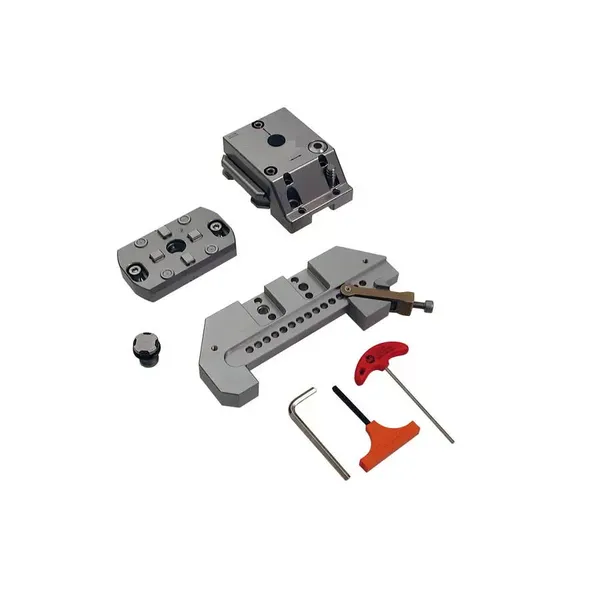

System 3R 3R-242S-4 Wire EDM User kit Compatible includes System 3R 3R-292.6S wire EDM SuperVice Magnum Compatible, System 3r 3R-272HP Wire EDM Levelling Adapter Compatible, System 3R 3R-605.26 Drawbar Wire EDM Compatible, 3R-602.2 Manual chuck compatible and allen keys of 3mm, 5mm, 6mm.
| Product | specifications | |
| 1 | 3R-602.2 Manual chuck compatible | ? Clamping force 6000 N |
| ? Built-in latch function | ||
| ? Fixed index positions 4X90 degrees | ||
| 2 | 3R-262HP Levelling adapter Macro compatible | For mounting SuperVice, a holder or a fixture in the |
| Macro system. | ||
| ? Adjustable in three axes | ||
| ? Supplied without drawbar | ||
| ? Adapted for automatic changing | ||
| ? Recommended maximum load 15 kg | ||
| 3 | 3R-292.6S SuperVice Magnum, compatible | Vice for clamping rectangular workpieces up to 150 mm |
| Tightening torque 10 Nm |
