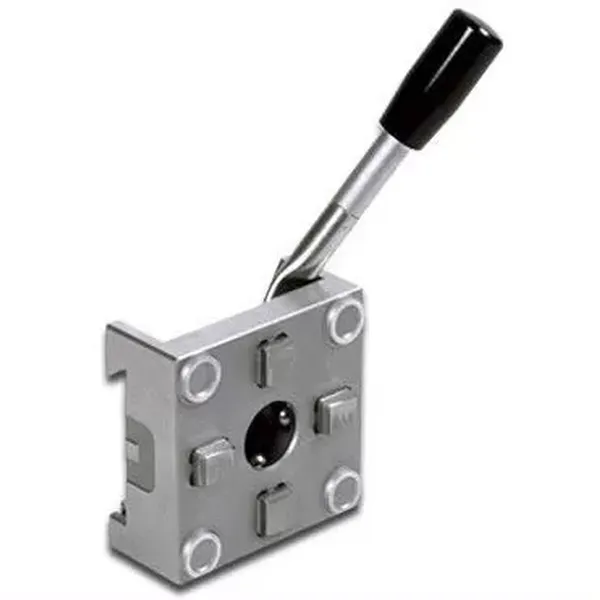

System 3R OEM 3R-602.27-1 Manual chuck Macro

System 3R OEM 3R-602.27-1 Manual chuck Macro
Chuck adapter with lever for Macro holder in the
WEDM system. Supplied with drawbar.
Note: When mounted on the reference element, the
two clamping jaws must be tightened with the
same torque, 4 Nm.
– Clamping force 6000 N
– Required drawbar 3R-605.27RS.
– Recommended maximum workpiece weight 7 kg.
– Fixed index positions 4X90 degrees.
– Weight 1.1 kg
