RHS® is India Manufacturer of compatible EROWA,System 3R EDM tooling workholding fixture Jig chuck holder vise
$0.01
System 3R OEM 3R-602.4.1 Pneumatic chuck Macro System 3R OEM 3R-602.4.1 Pneumatic chuck Macro Pneumatic chuck for Macro holder. Vertical mounting on the machine table or in the WEDM system. – Required air pressure 6+/-1 bar. – Air-blast cleaning of Z-references. – Clamping force 6000 N – Fixed index positions 4X90 degrees. – Required drawbar 3R-605.1RS. – Weight 3.7 kg.
9999 in stock

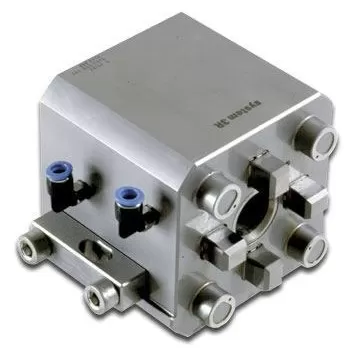

System 3R OEM 3R-602.4.1 Pneumatic chuck Macro
Pneumatic chuck for Macro holder. Vertical
mounting on the machine table or in the WEDM
system.
– Required air pressure 6+/-1 bar.
– Air-blast cleaning of Z-references.
– Clamping force 6000 N
– Fixed index positions 4X90 degrees.
– Required drawbar 3R-605.1RS.
– Weight 3.7 kg.
