System 3R OEM 3R-680.10-2 Pneumatic table chuck MacroMagnum System 3R OEM 3R-680.10-2 Pneumatic table chuck MacroMagnum Pneumatic table chuck. Requires drawbar 3R-605.1 or 3R-605.4 For Rapid Holding Systems Compatible version click the link below System 3R 3R-680.10-2 Compatible Pneumatic Table Chuck Rapid Holding Systems designs and engineers the best.System 3R compatible Tooling. High Quality 100% Compatible System 3R Gauging Devices, Chucks, Holders, Drawbars, Pallets, Plates, gauging devices, and self centering devices..Checkout the price of RHS BrandedSystem 3R 3R-680.10-2 Compatible Pneumatic Table Chuck
9999 in stock

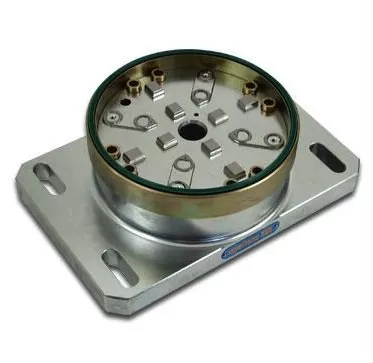

System 3R OEM 3R-680.10-2 Pneumatic table chuck MacroMagnum
Pneumatic table chuck.
– Blowing-clean Z-references.
– Sealing ring.
– Fixed index positions 4X90 degrees.
– Required drawbar 3R-605.1 or 3R-605.4.
– Required air pressure 6+/-1 bar.
– Turbo locking, MacroMagnum pallets.
– Weight 12 kg.
