Description

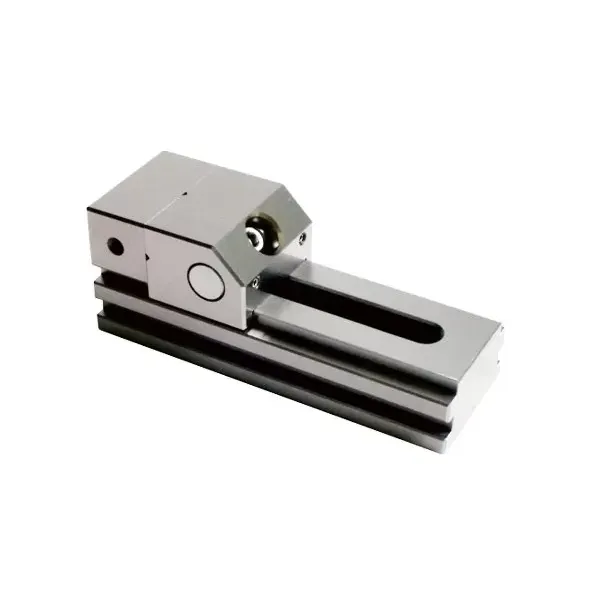

Specifications: RHS Wire edm machine vise can be accurate clamping and
suitable for square and long parts.
clamp size: 75mm,90mm,100mm,125mm,45mm
Application: Mount On Wire EDM machine and EDM machine for clamping workpiece
Repeatability: 0.005mm/100mm
Material: stainless steel
Specifications all models
| MODEL | |||||
| A(MM) | 100 | 140 | 172 | 190 | 230 |
| B(MM) | 35 | 48 | 63 | 73 | 98 |
| C(MM) | 40 | 50 | 60 | 70 | 80 |
| D(MM) | 20 | 25 | 30 | 35 | 40 |
| E(MM) | 25 | 25 | 30 | 35 | 40 |
| G (MAX CLAMPING) | 45 | 75 | 90 | 100 | 125 |
