Description

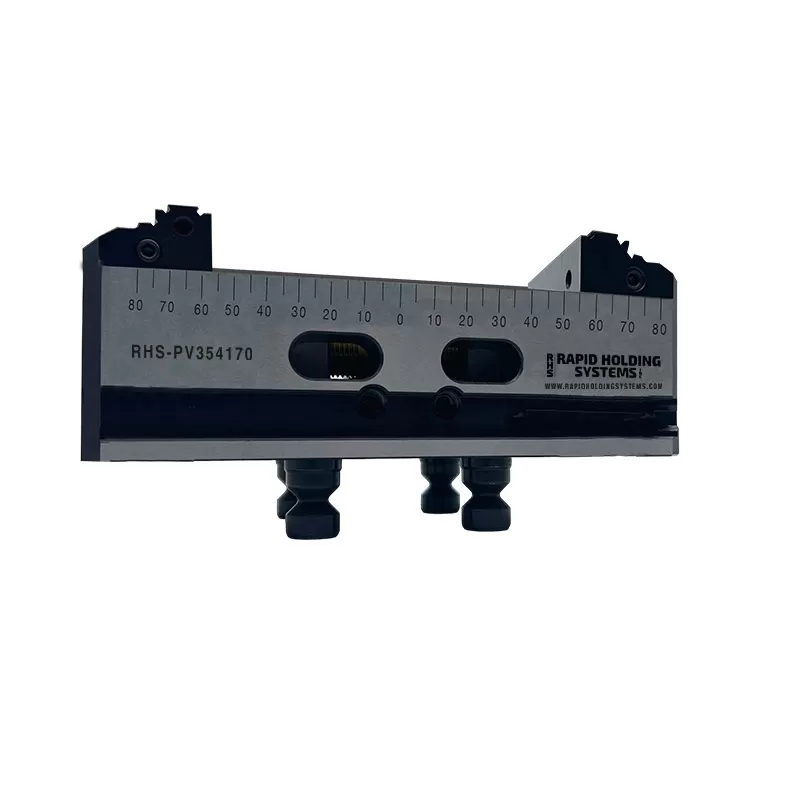

Zero point 5-Axis Self-Centering Vise 170X54
–Size is 170X54 mm, Height 70mm
–Clamping Range 0 to 142 mm.
-Quickly change the direction of the jaws and rotate 180 degrees to increase the clamping -range
-Special angle lock mechanism to prevent workpiece lifting when locked.
-special swing 1.5 degrees design on one side clamping for better gripping when workpiece is non parallel.
| Specifications | |
| Body Length (mm) | 170 |
| Clamping range (mm) | 0 to 142 |
| Jaw width (mm) | 54 |
| Tightening Torque (Nm) | 60 |
| Clamping force (kN) | 12 |
| Centering accuracy (mm) | +/-0.01 |
| Weight (kg) | 4.6 |
| Includes | clamping studs |
