Description

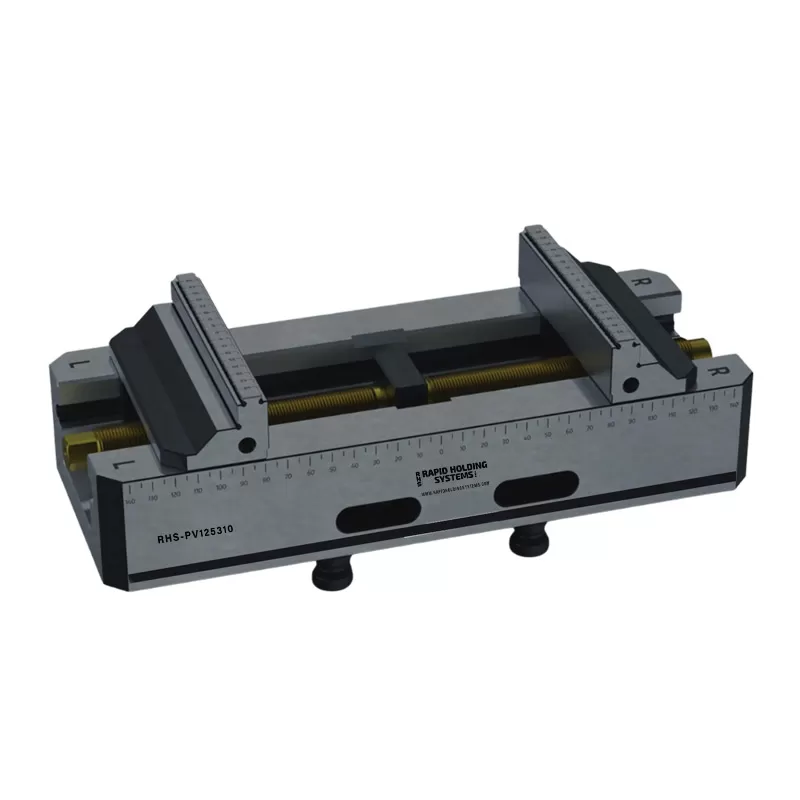

Zero point 5-Axis Self-Centering Vise 310X125
–Size is 310x125mm, Height 90mm
–Clamping Range 0 to 282 mm.
-Quickly change the direction of the jaws and rotate 180 degrees to increase the clamping -range
-Special angle lock mechanism to prevent workpiece lifting when locked.
-special swing 1.5 degrees design on one side clamping for better gripping when workpiece is non parallel.
| Specifications | |
| Body Length (mm) | 310 |
| Clamping range (mm) | 0 to 282 |
| Jaw width (mm) | 125 |
| Tightening Torque (Nm) | 100 |
| Clamping force (kN) | 16 |
| Centering accuracy (mm) | +/-0.01 |
| Weight (kg) | 16.1 |
| Includes | clamping studs |
