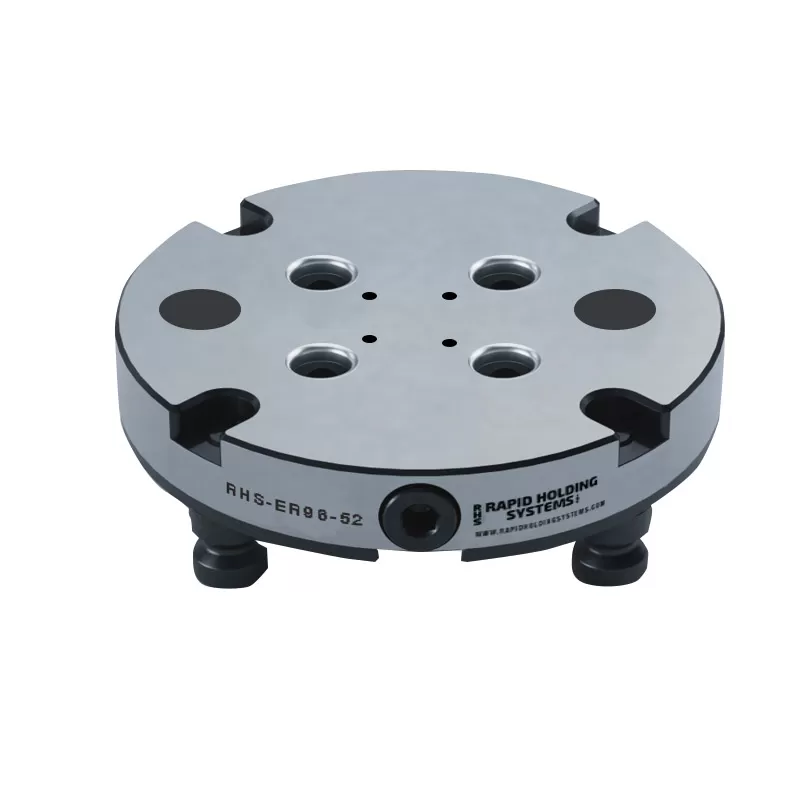

Description
-Size: ⌀157 x30
-Material: Steel (S)
-works on all Zero point 96 system to convert to 52 system.
-3 times higher locking force
-patent ejection function, Vise will be ejected from the base plate when loosen with the hex key.
-Optimized flap edge for mounting in the center groove.
-Compatible with RHS series PV77-54 / PV77-75
| Specifications | |
| Dimensions | ⌀157 x30 |
| Zero point systems | 96/52 |
| Zero point bolt | 16 |
| Compatible with series | PV77-54 / PV77-75 |
| Holding force (kN) | 60 |
| Accuracy (mm) | 0.008 |
| Max tightening torque (Nm) | 45 |
| Weight (kg) | 3.7 |
