Description

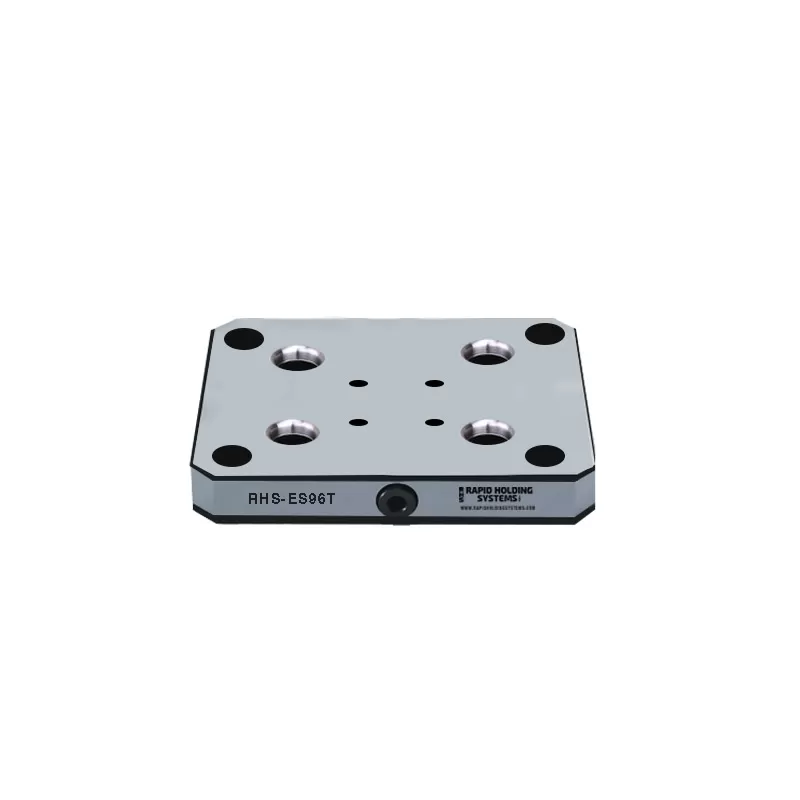

-Size: 192 x 156 x30
-Suitable for Tombstone on horizontal machining center.
-Material: Steel (S)
-3 times higher locking force
-patent ejection function, Vise will be ejected from the base plate when loosen with the hex key.
-Optimized flap edge for mounting in the center groove.
-Compatible with RHS series PV125-75 / PV125-125
| Specifications | |
| Dimensions | 192 x 156 x30 |
| Zero point systems | 96 |
| Zero point bolt | 20 |
| Compatible with series | PV125-75 / PV125-125 |
| Holding force (kN) | 60 |
| Accuracy (mm) | 0.008 |
| Max tightening torque (Nm) | 45 |
| Weight (kg) | 5.5 |
